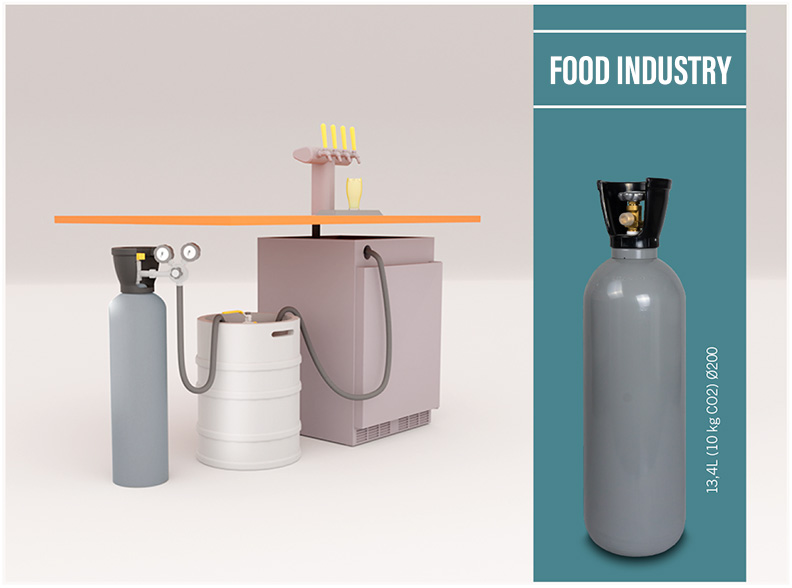

Food Industry Cylinders
Standard food industry cylinders,
available to all kinds of gases.
We produce special volumes under customer request.
Technical specifications
| Ø (mm) | Vol. ( L) |
Test pressure (bar) |
Gas Capacity (kg) |
Weight (kg) |
Thread size |
Neckring | LT* (mm) |
Norm |
|---|---|---|---|---|---|---|---|---|
| Steel 34CrMo4 Material | ||||||||
| 116 | 2.7 | 300 | 2 | 4.3 | 17E | NO | 358 | 9809-1 |
| 116 | 2.7 | 300 | 2 | 4.4 | 25E | YES | 358 | 9809-1 |
| 140 | 5.4 | 300 | 4 | 7.5 | 25E | YES | 490 | 9809-1 |
| 140 | 6.7 | 300 | 5 | 8.4 | 25E | YES | 575 | 9809-1 |
| 178 | 8 | 300 | 6 | 12.1 | 25E | YES | 465 | 9809-1 |
| 200 | 10.7 | 300 | 8 | 15.2 | 25E | YES | 490 | 9809-1 |
| 200 | 13.4 | 300 | 10 | 17.2 | 25E | YES | 580 | 9809-1 |
| 229 | 16 | 300 | 12 | 19 | 25E | YES | 540 | 9809-2 |
| 229 | 50 | 300 | 38 | 44 | 25E | YES | 1500 | 9809-2 |
* Without valve and protection guard
